YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery
YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery
Skontaktuj się teraz

YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery

Miejsce pochodzenia: Chiny Nazwa handlowa: topsky

Szczegóły informacji
Ciśnienie robocze: 25mpa Fałd wysokości: 0,9m
System danych: NTSC Zdalny waga: 1,4 kg
Pokrycie stóp: 450 m/s Waga odłamka: 2,3 kg
Kąt: 120 stopni prędkość przelotowa: 20m/s
Typ baterii: wymienna bateria litowa, czuwanie 4 H Penetrują zdolności: drewno 70 mm ； stalowa płyta 3 mm
Ważyć: 15,5 kg Certyfikaty: NIJ, ISO
Tryb wykrywania: Automatycznie Czas trwania Stanarda: 320 minut
Średnica toczenia: ≤2568 mm
Podkreślić:

7 Parameters Detection Gas Detector

,

Audible and Visual Alarm Safety Monitoring Device

,

Replaceable Lithium Battery Multi-parameter Detection Alarm Instrument

opis produktu

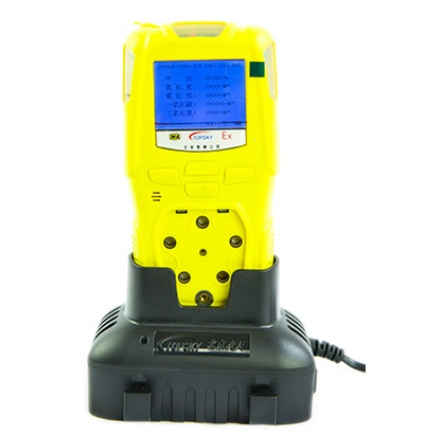

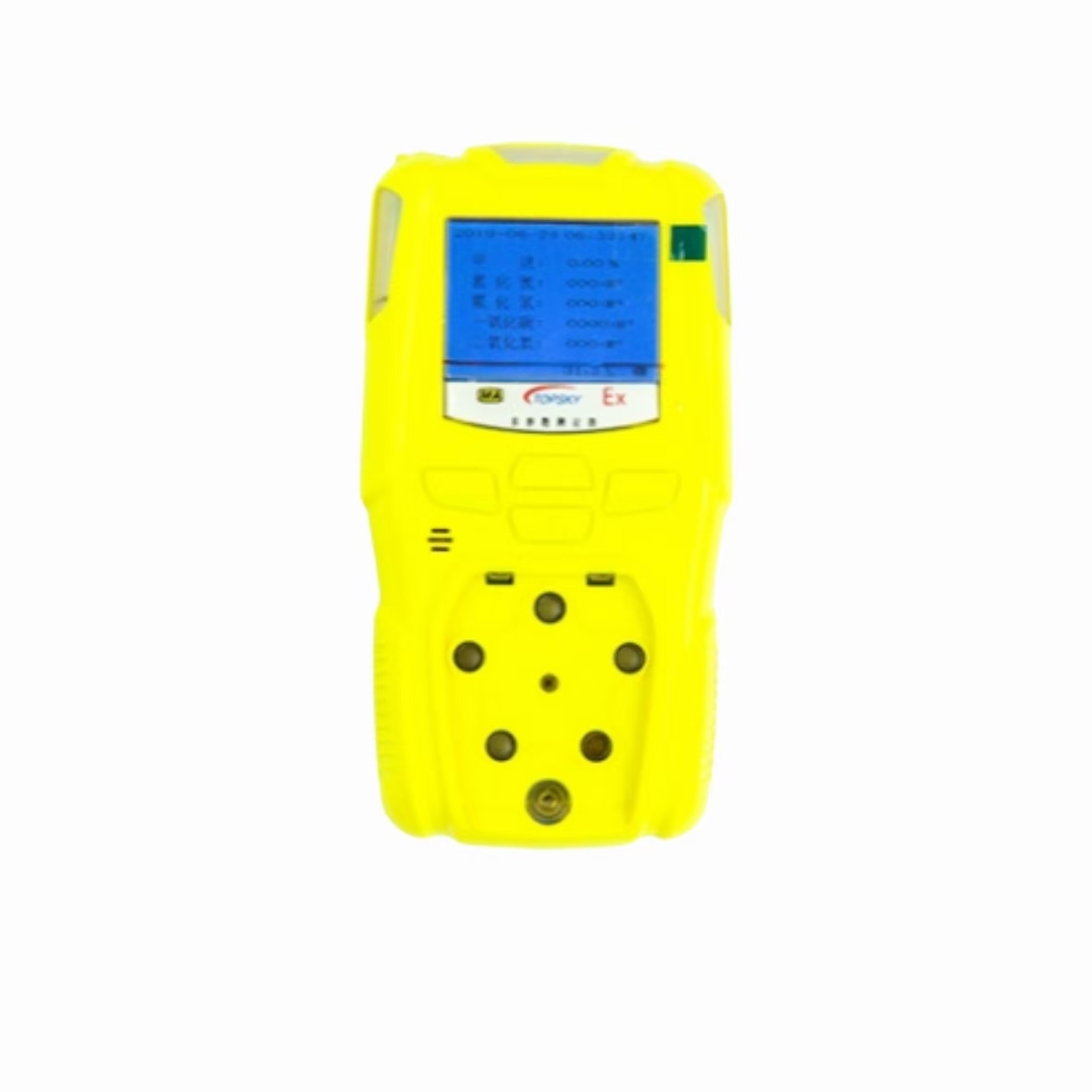

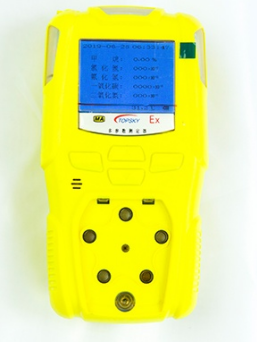

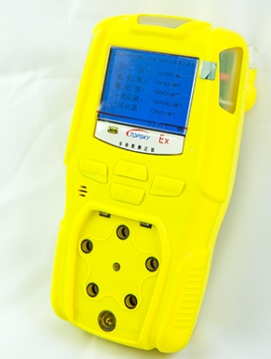

YQ7 Multi-parameter Detection Alarm Instrument
The YQ7 multi-parameter detection alarm instrument simultaneously and continuously monitors 7 critical parameters including CH4, O2, CO, CO2, H2S, temperature (°C), and wind speed (m/s). This advanced detector triggers immediate audible and visual alarms when parameter levels exceed or fall below preset safety thresholds, enabling timely safety measures to protect life and property.
Utilizing an 8-bit microcontroller and high-precision detection components, the YQ7 delivers exceptional sensitivity and rapid response times. The 3-inch color LCD provides clear, reliable data display. Certified by national authorities, this instrument is suitable for all personnel including technicians, operators, and management in industrial environments.
Key Features
  • Simultaneous detection of 7 parameters: CH4, O2, CO, CO2, H2S, °C, and m/s
  • User-configurable alarm points for customized safety thresholds
  • Secondary sound and light alarm functionality
  • Replaceable modular sensors for easy maintenance
  • Comprehensive monitoring for mine gas and environmental parameters
  • One-click zero calibration and charging zero calibration
Technical Specifications
Measurement Ranges
Parameter Range Resolution
Methane (CH4) 0 - 100% (VOL) 0.01%
Oxygen (O2) 0 - 30% (VOL) 0.1%
Carbon Monoxide (CO) 0 - 1000 ppm 1 ppm
Hydrogen Sulfide (H2S) 0 - 100 ppm 1 ppm
Temperature -20.0 - 60.0 °C 0.1 °C
Wind Speed 0.4 - 30.0 m/s 0.1 m/s
Additional Specifications
  • Display: LCD with real-time data, system status, vibration, sound and light alarms
  • Alarm Sound Level: ≥75 dB(A) at 1 meter distance
  • Light Signal Visibility: ≥20 meters in darkness
  • Power Supply: 1600 mAH lithium manganese oxide battery with overcurrent protection
  • Battery Specifications: Maximum open-circuit voltage 4.3V, maximum short-circuit current 1.0A
  • Operating Time: 10 hours (non-alarm state)
  • Housing: ABS engineering plastic
  • Protection Rating: IP54
  • Weight: 1 kg
  • Dimensions: 160mm × 85mm × 43mm
  • Glove-friendly operation with simple button interface
