Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed
Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed
Skontaktuj się teraz

Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed

Miejsce pochodzenia: Chiny Nazwa handlowa: TOPSKY

Szczegóły informacji
Obracanie: Przednie ramię 360° Maksymalny moment obrotowy: 50 Nm
Masa ciała: 16 kg obracać się: 0-120 obr./min
Ochraniacz stóp: 450 m/s Wymiary: Różni się w zależności od typu sprzętu, preferowana jest kompaktowa konstrukcja
Czas na oddychanie: 20,5 sekundy. Czas pomiaru: Mniej niż 10 sekund
Fałszywa szybkość alarmu: ≤1% Życie: 100 strzelanin
Temperatura przechowywania: -45°C ∼65°C; Rozmiar urządzenia słuchu: 210*100*100 mm
Średnica wyrzutni: 38 mm Ramiona: 567,7 m/s
Waga garnituru: Około 29 kg z opancerzonymi płytkami wybuchowymi
Podkreślić:

500kg maximum load capacity unmanned off-road platform

,

35° maximum climbing angle rescue escort transportation robot

,

13km/h maximum driving speed 6X6 differential wheeled robot chassis

opis produktu

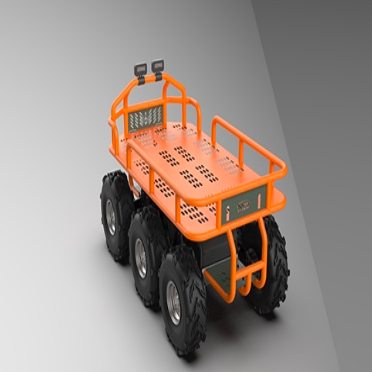

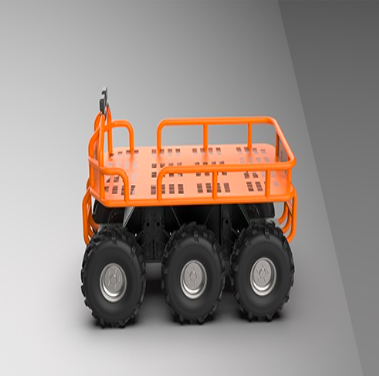

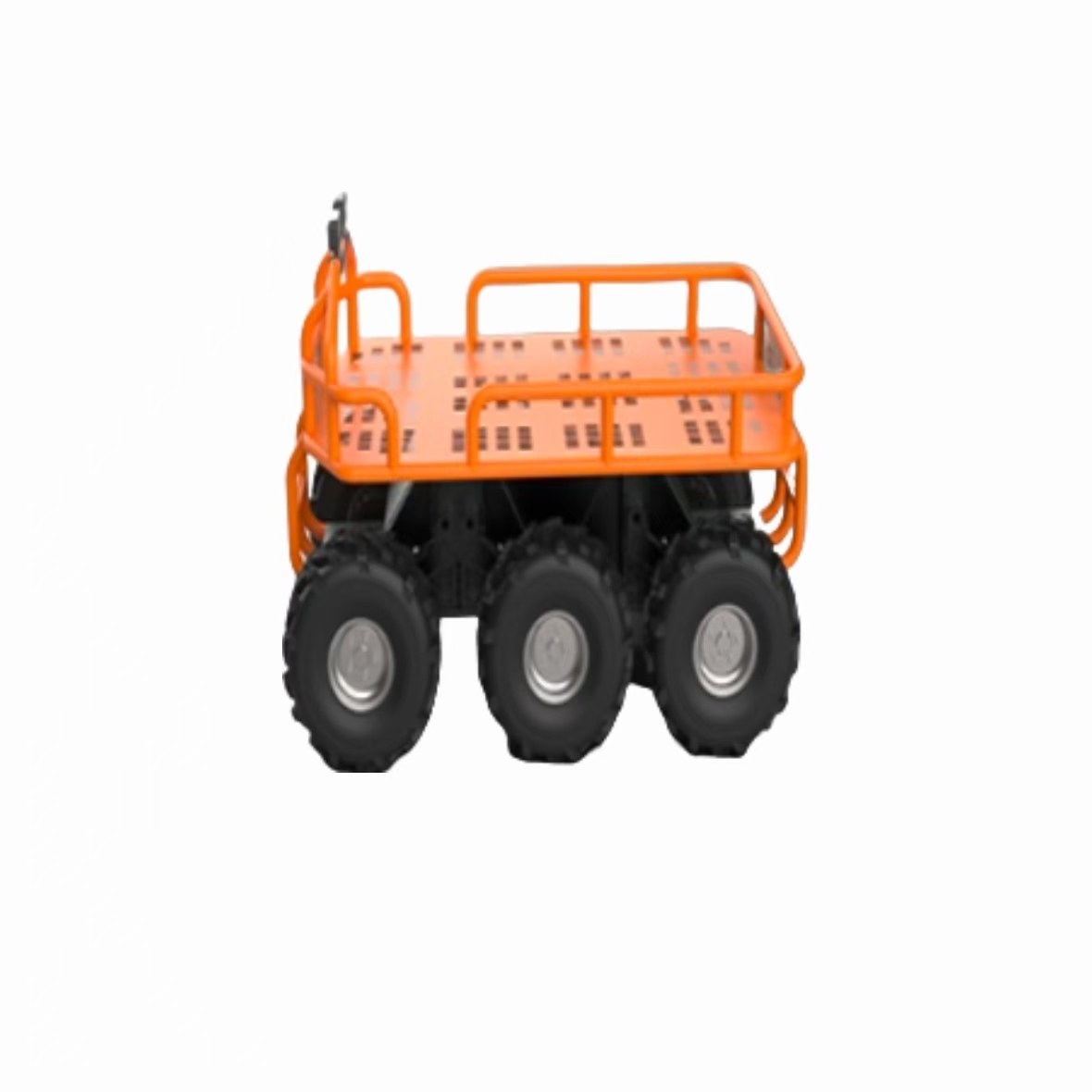

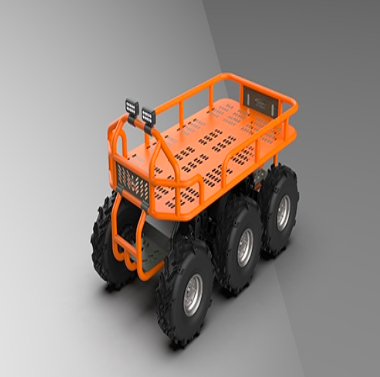

Unmanned Off-Road Platform (Rescue Escort Transportation Robot)
Overview
The 6X6 differential wheeled robot chassis is a high-performance mobile platform engineered to excel in complex outdoor environments and diverse operational requirements. Featuring a unique six-wheel configuration and advanced differential drive technology, this platform serves as an ideal foundation for specialized operation robots, scientific research and exploration robots, and industrial application robots. It delivers a robust and reliable mobility solution for demanding robotic applications.
Application Scenarios
  • Rescue operations for large-scale fires in petroleum and chemical enterprises
  • Firefighting and rescue in collapse-prone areas including tunnels and subways
  • Emergency response in environments with potential explosive gas or liquid leaks
  • Rescue missions in smoke-filled or toxic gas environments
  • Close-proximity firefighting operations where personnel safety is at risk
Technical Specifications
Product Name 6X6 Differential Wheel Robot Chassis
Model TIGER-03
Power System Electric, Lithium Battery
Chassis Dimensions ≤ 2270mm (L) × 1250mm (W) × 845mm (H)
Cabin Dimensions ≤ 1350mm (L) × 350mm (W) × 528mm (H)
Weight 550kg
Maximum Load Capacity 500kg
Motor Power 3kW × 6
Motor Selection 96V High-Precision DC Wheel Hub Motor
Steering Method Differential In-Place Steering
Maximum Driving Speed 13km/h
Maximum Obstacle Height 300mm
Maximum Obstacle Width ≤ 400mm
Ground Clearance 280mm
Maximum Climbing Angle 35°
Surface Treatment Whole Machine Baking Paint
Main Materials Alloy Steel / Carbon Steel Square Tube / Aluminum Alloy
Tire Options Regular Radial Tires / Low-Pressure Tires (Customizable)
