Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Skontaktuj się teraz

Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

Miejsce pochodzenia: Chiny Nazwa handlowa: topsky

Szczegóły informacji
Długość fali: 447NM; 415 NM Gwarancja: 5 lat
Rozmiar piksela: : około 160 μm. Hałas: mniej niż 30dB
Zakres ostrości: 0.3m~ Regulacja pionowa: 0-30cm
Rozmiar zdalny: 278*184*43 mm Rozmiar urządzenia słuchu: 210*100*100 mm
Ochraniacz szyi: 850 m/s Model: RXR-M80D
Typ alarmu: Lekki dźwięk i wibracje Rozmiar plaży: 73*16*50 cm
Powiększać: 16 czasów Maksymalna prędkość liniowa: ≥1,52 m/s, stabilna prędkość zdalnego sterowania
Typ produktu: Sprzęt
Podkreślić:

4G Transmission Dust Measurement Instrument

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

opis produktu

Dust Measurement Instrument
Product Overview

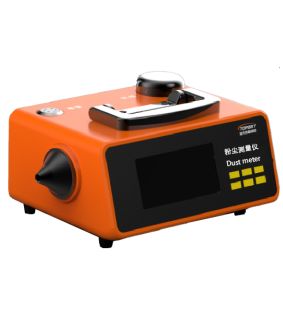

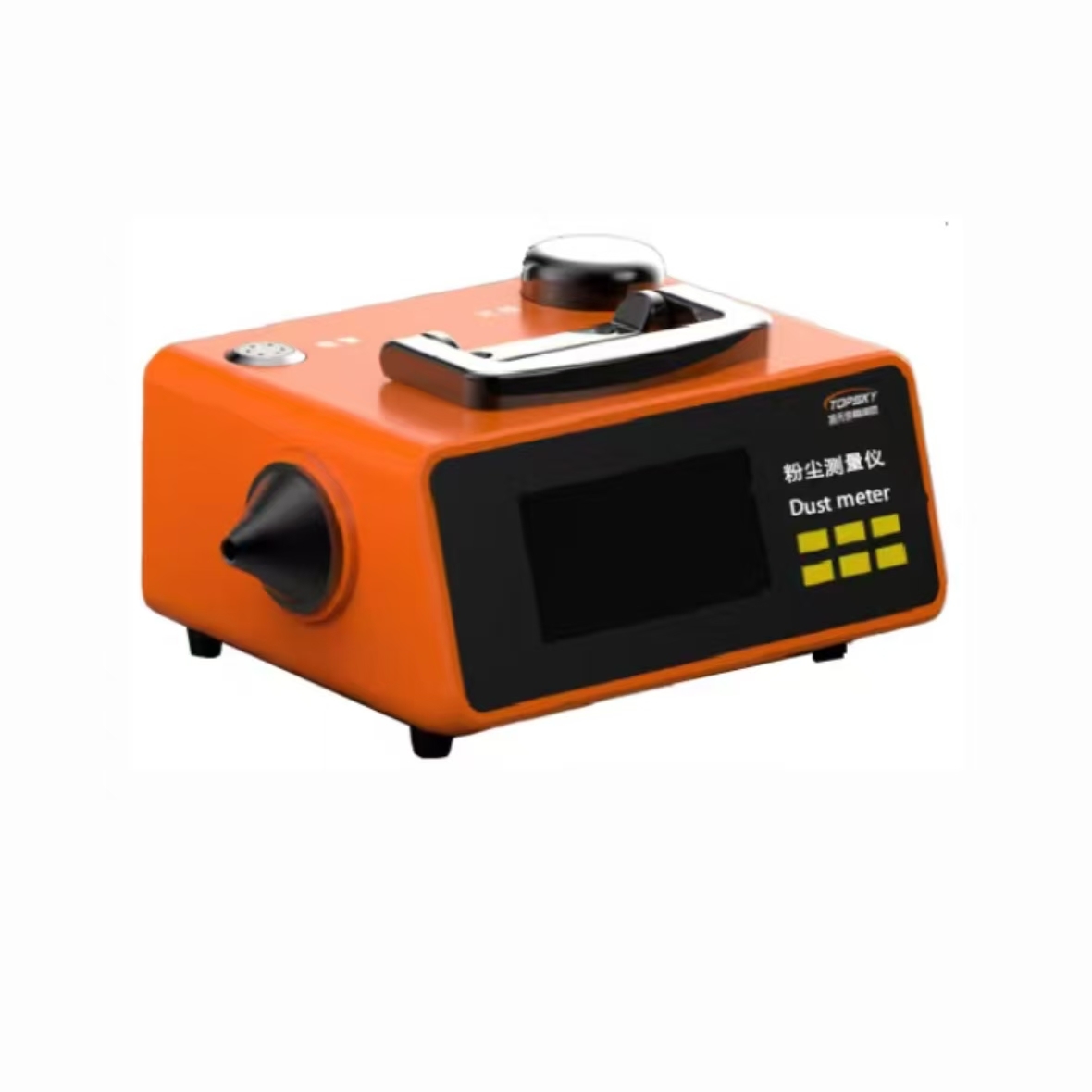

The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • ★ Lightweight: Compact and portable design for easy measurement
  • ★ Efficient: Direct reading with one-button operation and 1-minute results
  • ★ High Precision: Resolution of 0.001mg/m³
  • ★ Automatic Alarm: Customizable threshold alerts
  • ★ Data Processing: Scheduled sampling with TWA calculation
  • ★ Networking: 4G transmission for real-time data visualization
  • ★ Maintenance-free: No cleaning required for sensor module
  • ★ Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range ★ 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
★ 0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ★ ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function ★ Built-in with customizable concentration settings
Data Storage ★ Up to 9999 data sets
Calculations ★ Automatic time-weighted average (TWA)
Network Function ★ 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
