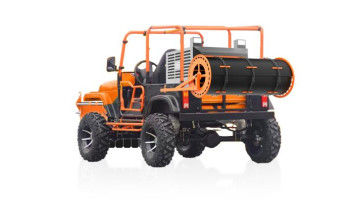

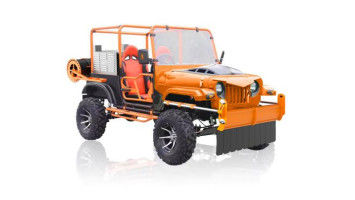

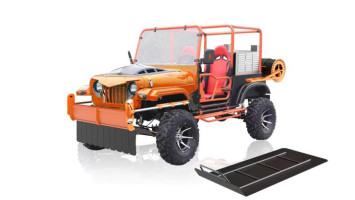

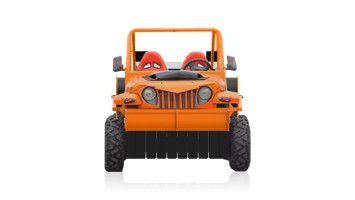

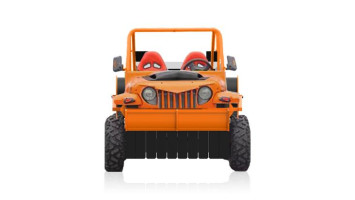

High-level Safety Amphibious All-Terrain Prairie Fire Vehicle Versatility

I. Product Overview

II. Scope of Application

• Grassland fire suppression
• Forest fire suppression
• Long-distance transportation

III. Product Features

1. High Mobility
   • All-terrain capability: Handles mountains, water crossings, slopes, mud, and swamps.
   • 4×4 low-pressure tires suitable for all rescue scenarios.
   • Maximum seating capacity: 4 persons.
2. High Speed
   • Speed: ≥30 km/h
3. High Safety
   • Fire-resistant and flame-retardant body materials.
   • Semi-enclosed design with rollover protection structure.
4. Easy to Operate
   • Handlebar-style controls requiring minimal training.
5. Multifunctionality
   • Integrates striking & clearing, wind-water-chemical integration, and dragging & rolling suppression.
   • Equipped with fire baffle, rolling suppression plate, suppression device, wind-driven fire extinguisher, and fire extinguisher projectile box.

IV. Technical Specifications

1. Vehicle Weight: ≤600 kg
2. Rated Load: ≥300 kg (or 4 persons)
3. Dimensions: ≤3360×1610×1210 mm
4. Ground Clearance: ≥200 mm
5. Engine: Single-cylinder, water-cooled, 4-stroke engine
6. Displacement: ≥350 CC
7. Transmission: Automatic
8. Fuel Tank Capacity: ≥20 L
9. Starting Method: One-key electric start
10. Throttle Control: Handlebar-style
11. Cabin Equipment: LCD instrument panel, water temperature gauge, fuel gauge, fully sealed windshield, wiper
12. Drive System: All-wheel drive
13. Maximum Speed: ≥30 km/h
14. Minimum Turning Radius: ≤4 m
15. Trench Crossing: ≥200 mm
16. Maximum Gradient: ≥20°
17. Traction Force: 2000 N
18. Multifunctional Integration: Combines striking & clearing, wind-water-chemical integration, and dragging & rolling suppression with fire baffle, rolling plate, device, wind extinguisher, and fire projectile launcher.
19. Water Rescue Comprehensive System
    • Video Recording & Storage:
      • Wi-Fi connectivity, 1080P HD resolution.
      • Maximum storage: 256 GB.
    • Intercom & Loudspeaker:
      • Two-way communication up to 3000 meters.
      • Loudspeaker range: ≥500 meters.
    • Network Transmission:
      • GPS + BeiDou + Wi-Fi + LBS positioning with ≤3-meter accuracy.
    • Lighting System:
      • ≥1200 lumens, illumination range ≥50 meters.
    • Leakage Detection:
      • Detects 120/240V power lines beyond 3 meters in water rescue scenarios.
    • Certification:
      • Certified by a national-level authoritative testing institution (copy of certificate provided).
